Model Whirlpool F8957^0 – Common Parts & Diagrams

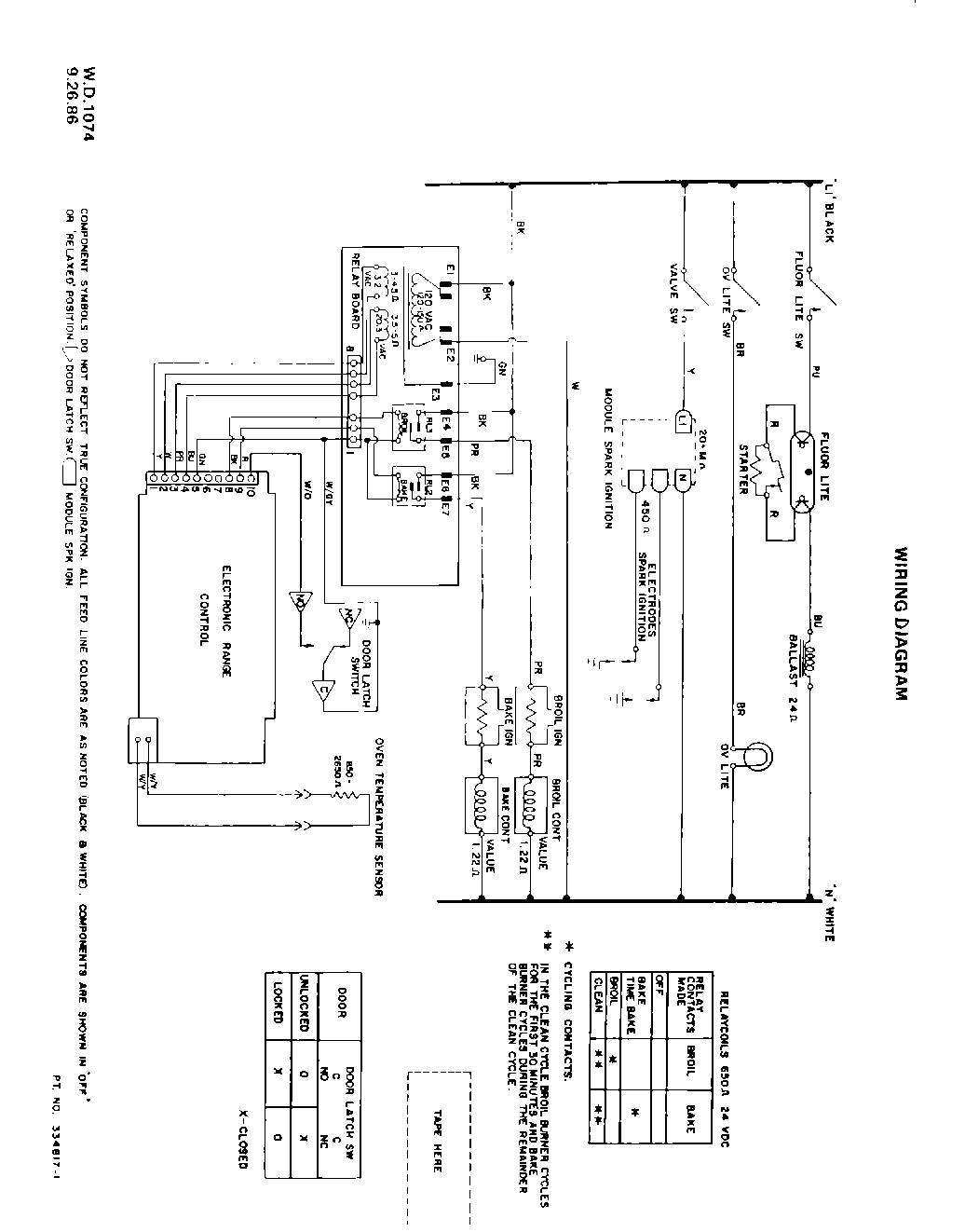

10 - SECTION

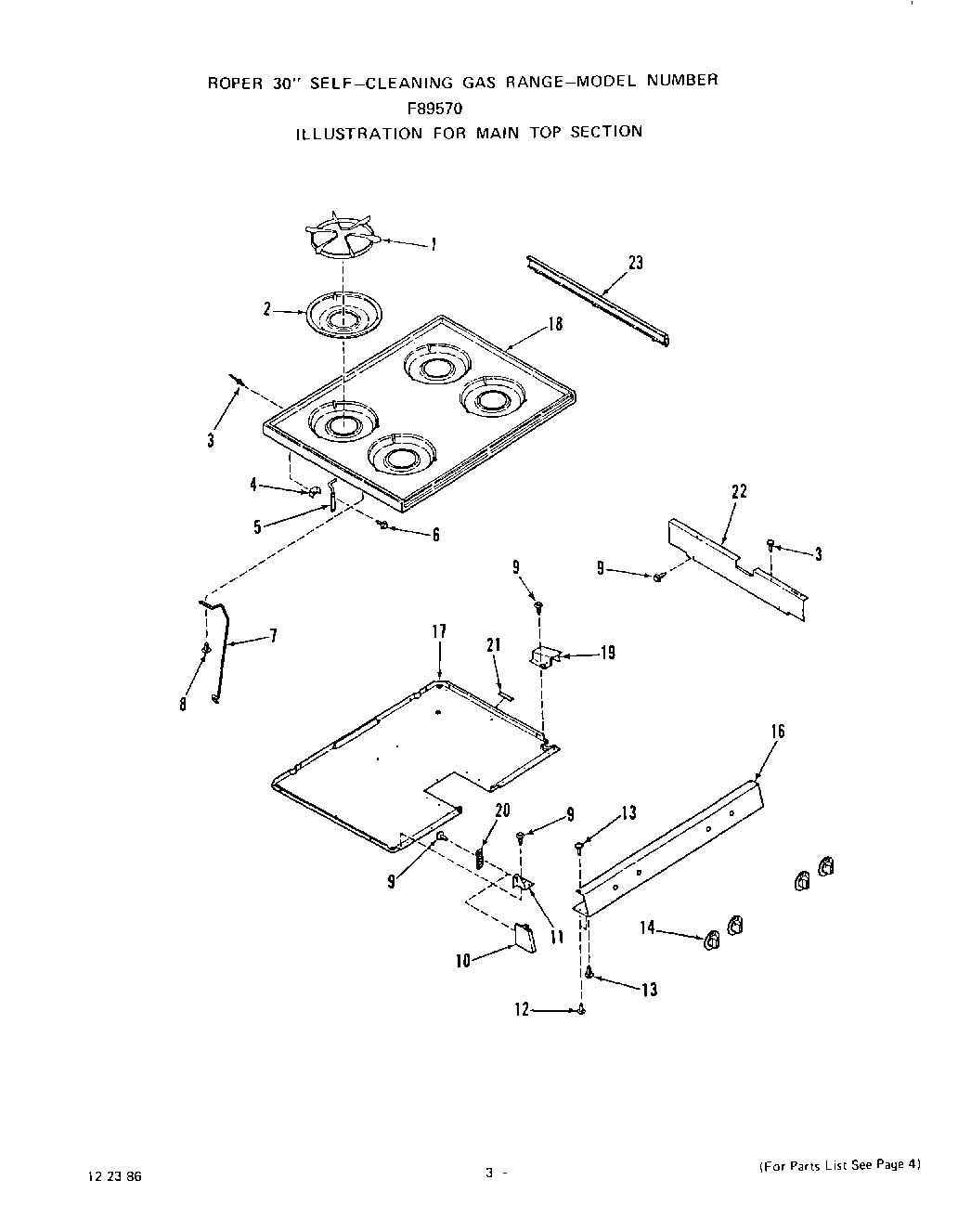

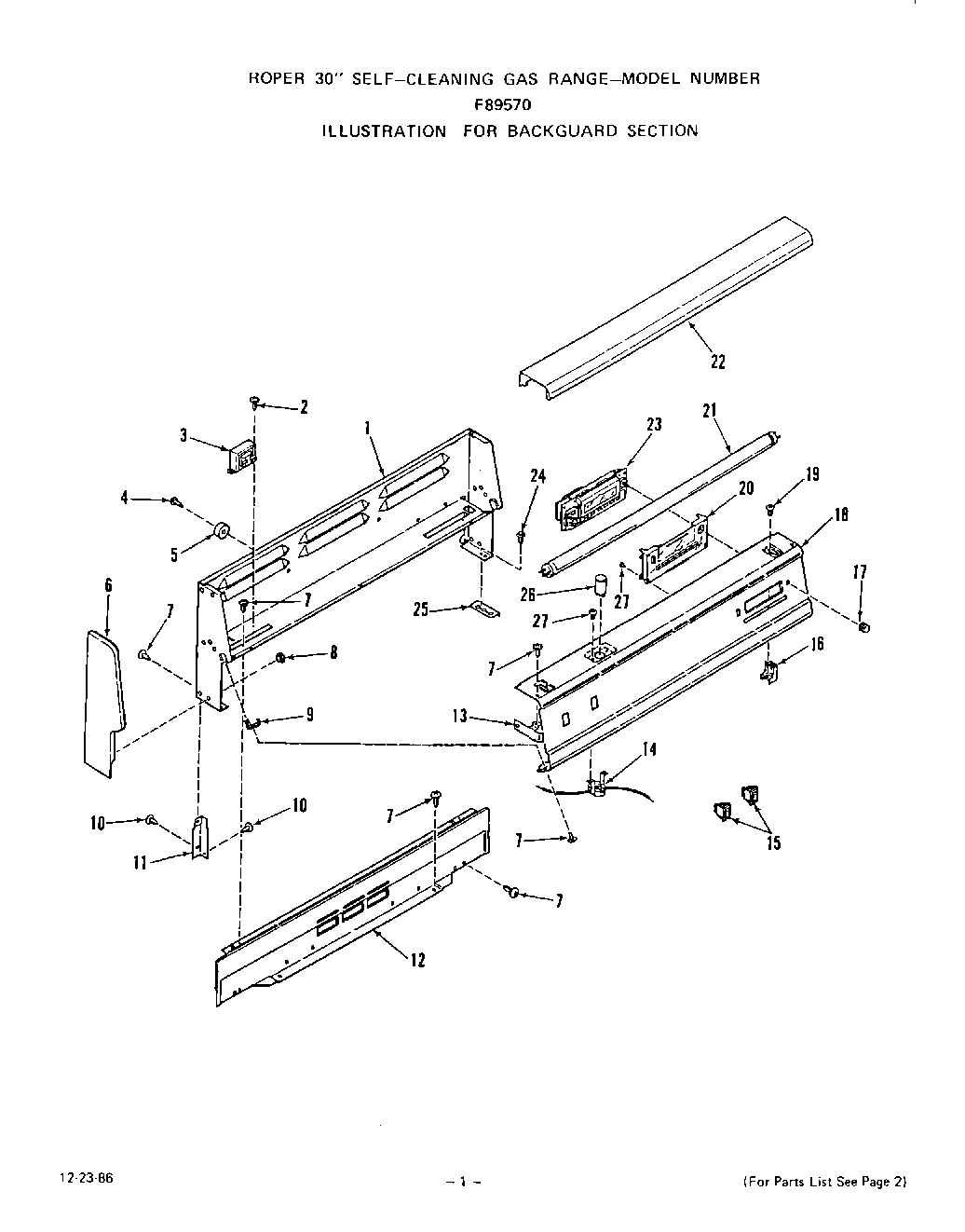

02 - MAIN TOP

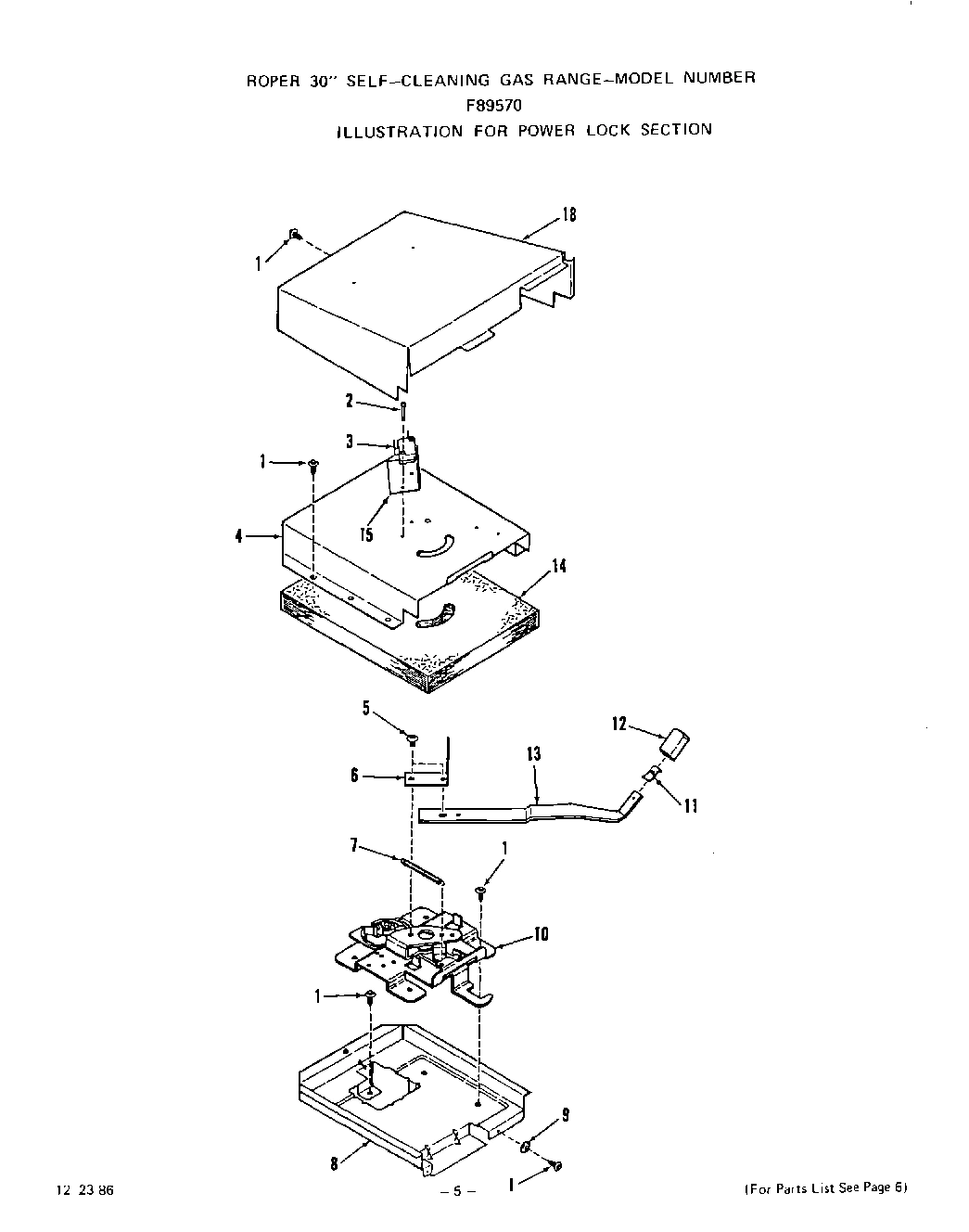

04 - OVEN BODY

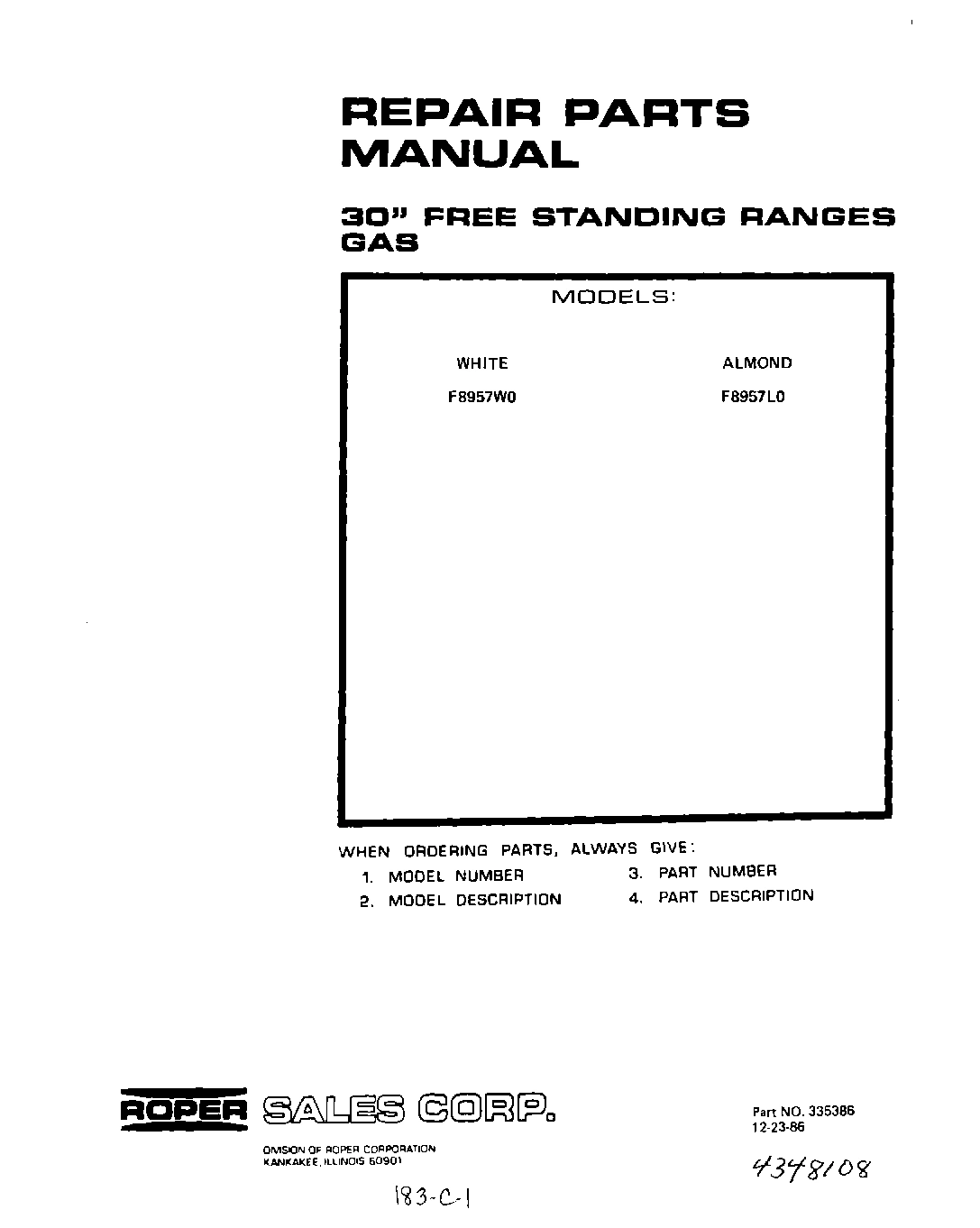

01 - BACKGUARD
03 - POWER LOCK

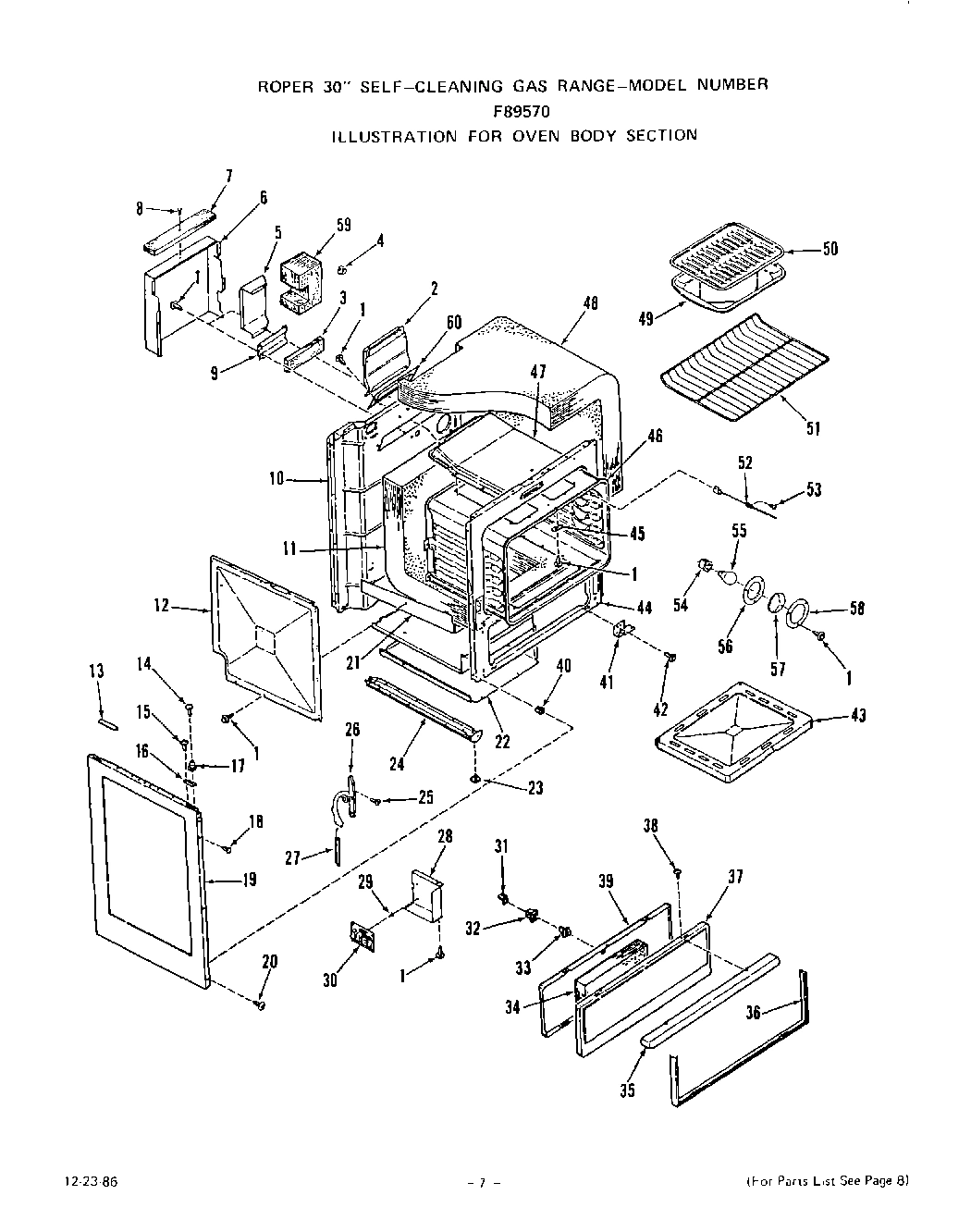

05 - BROILER AND OVEN BURNER

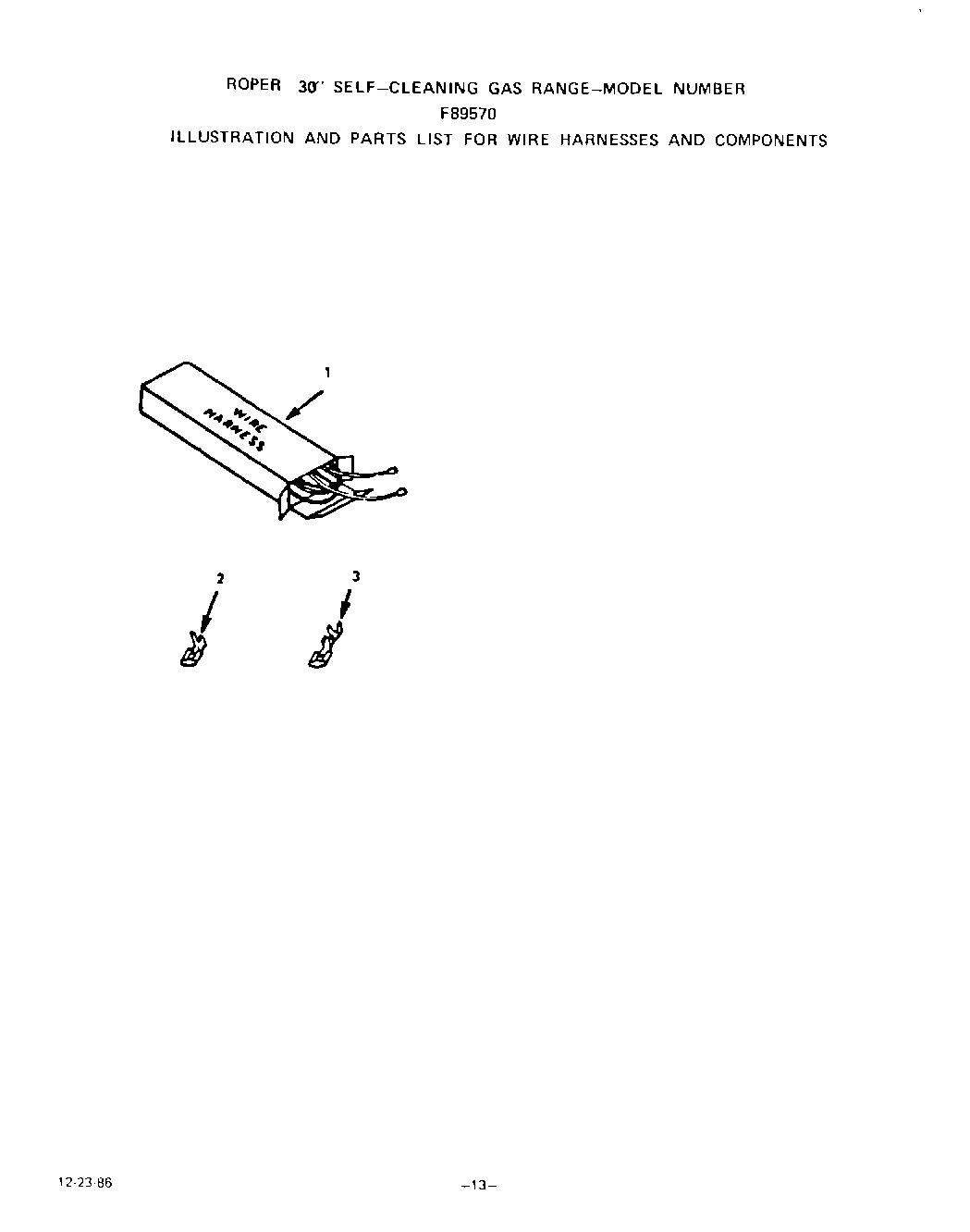

09 - WIRE HARNESS AND COMPONENTS

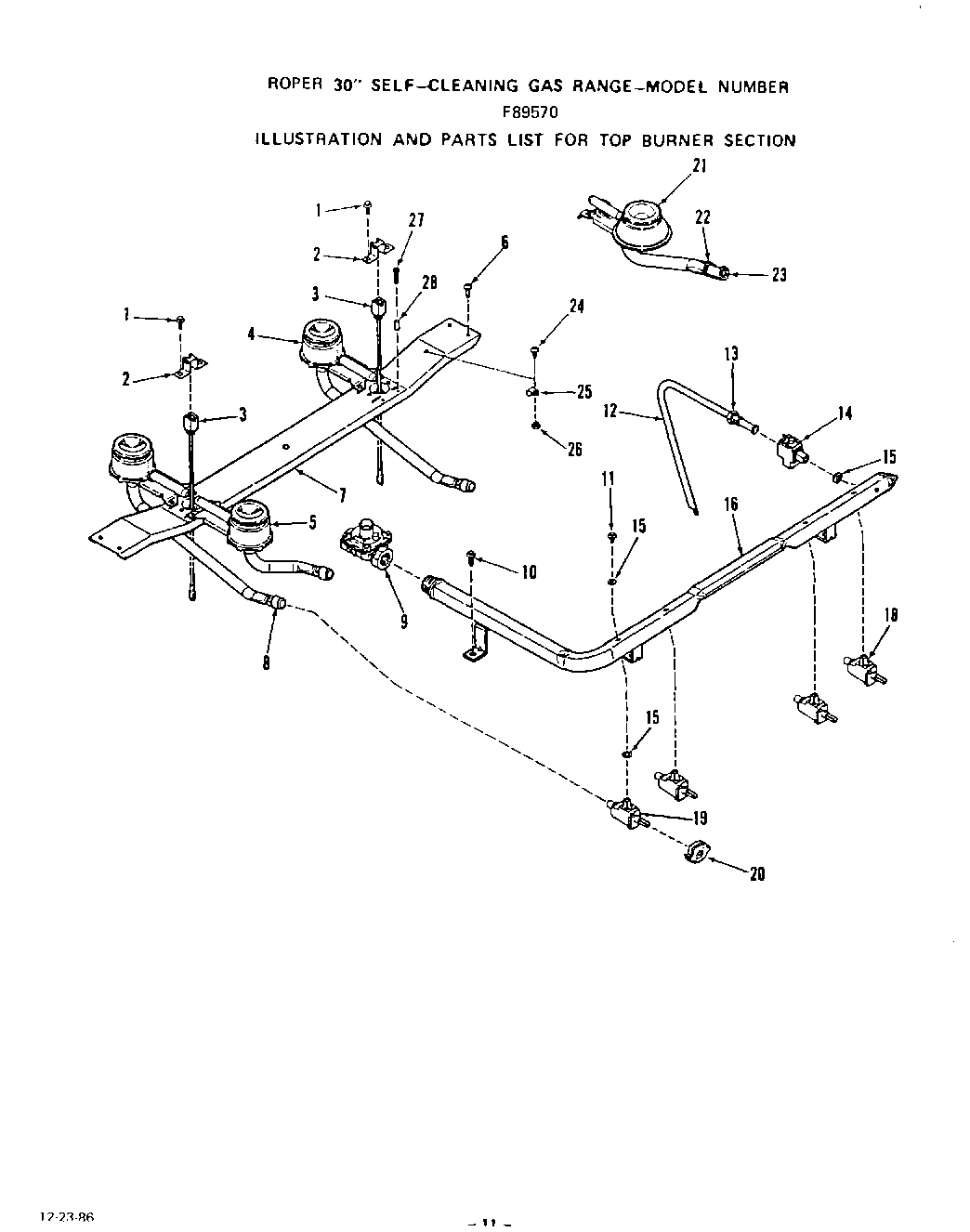

07 - OVEN DOOR

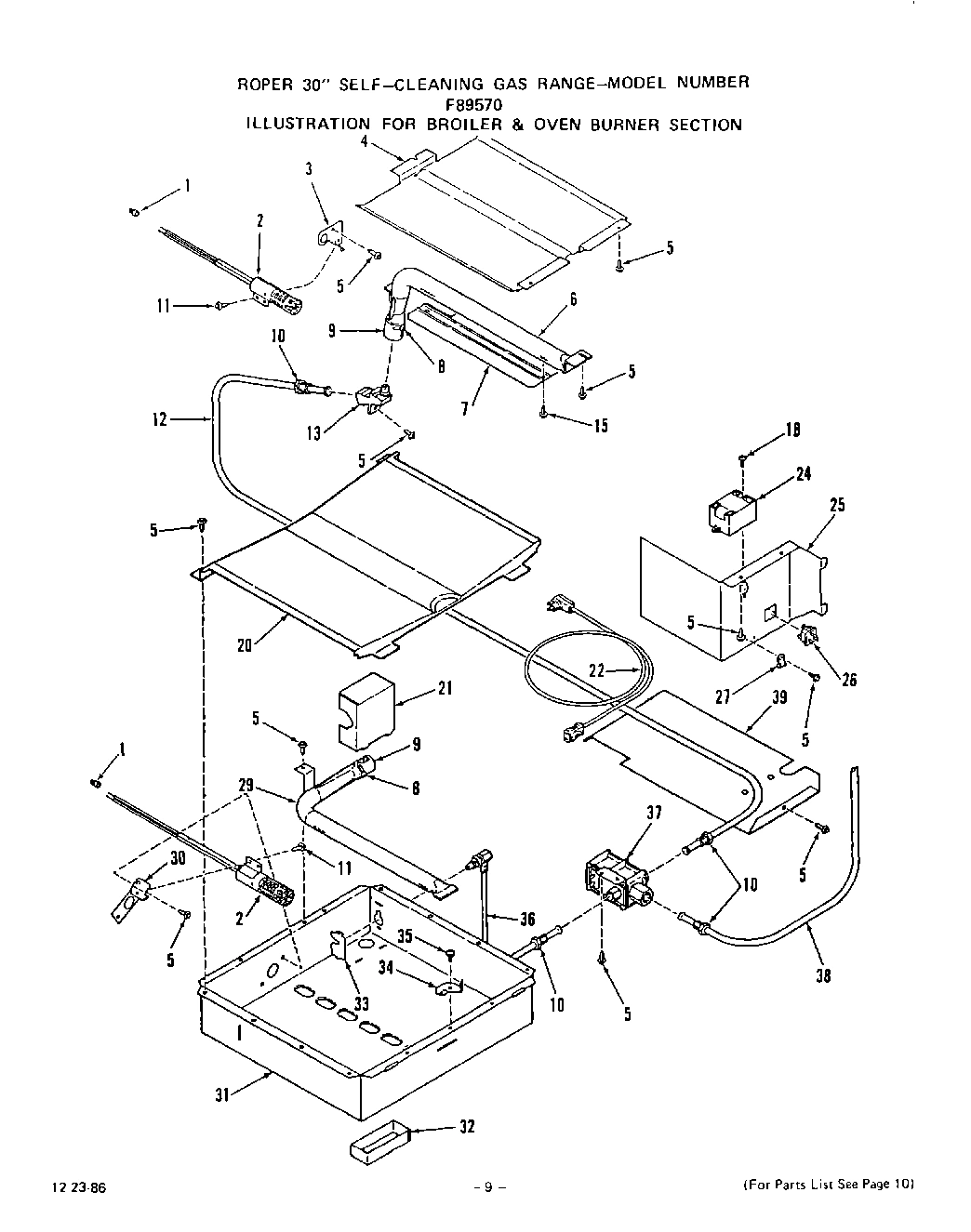

06 - TOP BURNER

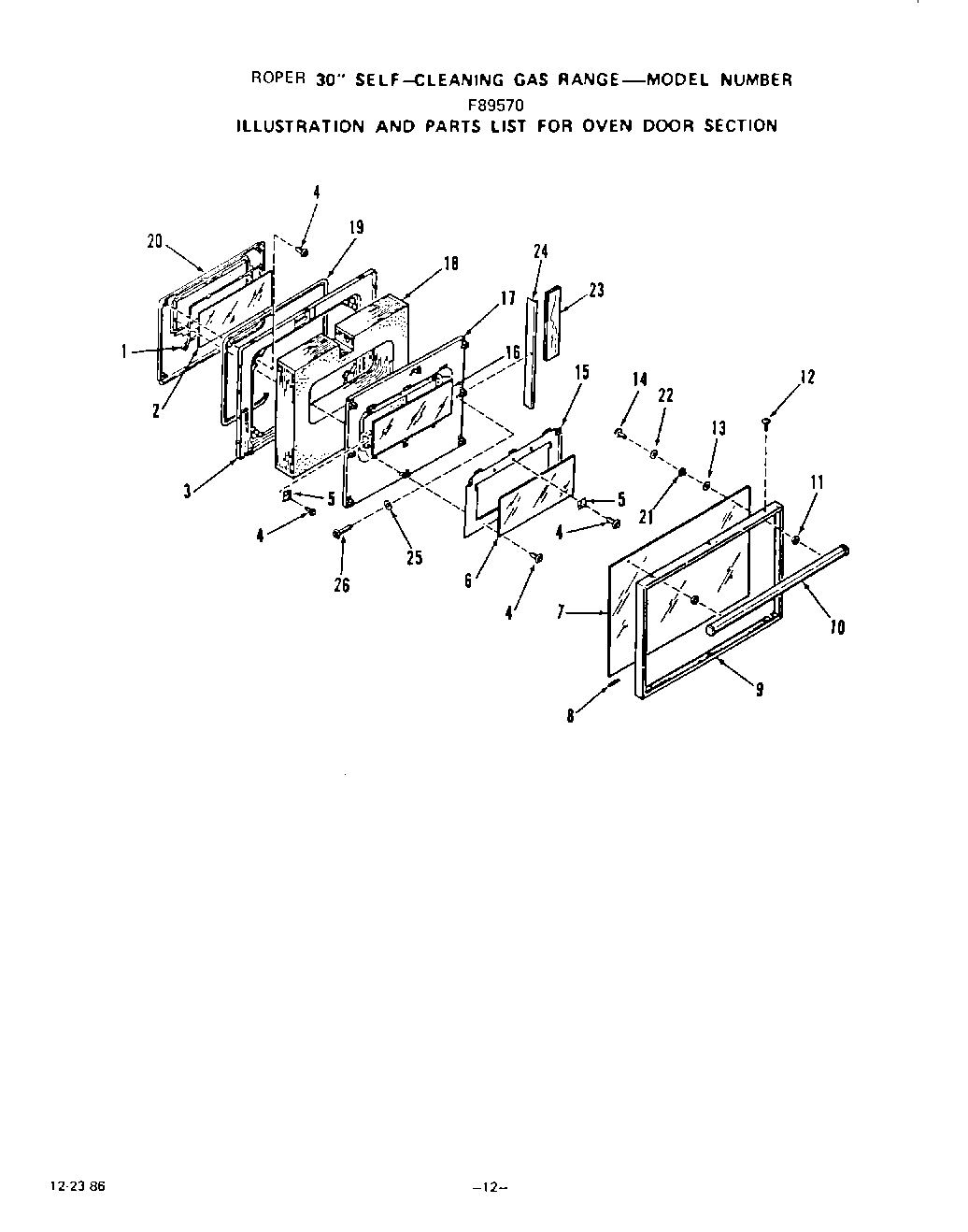

08 - WIRE HARNESS AND COMPONENTS
Common parts from model Whirlpool F8957^0
xRight WPL 334632 Contact Us For Availability
xLeft WPL 334633 Contact Us For Availability
xRight WPL 334510 Contact Us For Availability
xLeft WPL 334511 Contact Us For Availability
1
Backguard Body WPL 335777 Contact Us For Availability
1
Top Burner Grate (4 Req) WPL 330242 Contact Us For Availability
1
Switch-Gas Valve WPL 329364 Contact Us For Availability
1
Main WPL 334801 Contact Us For Availability
1
Backguard WPL 334802 Contact Us For Availability
1
Relay WPL 334804 Contact Us For Availability
1
Wire Harness WPL ARI57079A2 Contact Us For Availability
1
Wire Connector WPL 103595 Contact Us For Availability
1
Seal-Inner Glass WPL 302935 Contact Us For Availability
2
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
2
Aeration Pan (4 Req) WPL 332299 Contact Us For Availability
2
Flue Deflector WPL 331564 Contact Us For Availability
2
Flag Terminal 1/4`` WPL 238389 Contact Us For Availability
2
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
2
Igniter-Broiler & Oven Burner WPL 319887 Contact Us For Availability
2
Inner Glass-Oven Door WPL 312426 Contact Us For Availability
3
Ballast WPL 98186 Contact Us For Availability
3
Micro Switch WPL 334932 Contact Us For Availability
3
Rivet WPL 301167 Contact Us For Availability
3
Insulation WPL 330166 Contact Us For Availability
3
3/16`` WPL 238392 Contact Us For Availability
3
1/4`` WPL 238393 Contact Us For Availability
3
Faston Terminal WPL ARI57080A7 Contact Us For Availability
3
Electrode WPL ARI57078A9 Contact Us For Availability
3
Bracket-Broiler Burner Igniter WPL 327804 Contact Us For Availability
3
Lining-Oven Door WPL 331624 Contact Us For Availability
4
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
4
Cover-Lock Rod WPL 333628 Contact Us For Availability
4
Hinge Mounting Bracket WPL 335975 Contact Us For Availability
4
Bushing WPL 324257 Contact Us For Availability
4
Rear Burner-Lt. or Rt.. (Inc`s. Key 8) WPL 333223 Contact Us For Availability
4
Baffle-Broiler Burner WPL 327807 Contact Us For Availability
5
Bumper WPL 335123 Contact Us For Availability
5
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
5
Right WPL 320921 Contact Us For Availability
5
Left WPL 320922 Contact Us For Availability
5
Main Top Hinge WPL ARI57069A1 Contact Us For Availability
5
Front Burner-Lt (Inc`s. Key 8) WPL 333222 Contact Us For Availability
5
Retainer-Door Glass WPL 326009 Contact Us For Availability
6
Right WPL 333760 Contact Us For Availability
6
Left WPL 333761 Contact Us For Availability
6
End Cap WPL ARI57067A1 Contact Us For Availability
6
Extension-Handle WPL 335984 Contact Us For Availability
6
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
6
Screw 6-32x3/8`` WPL 327621 Contact Us For Availability
6
Flue Deflector Shield WPL 328487 Contact Us For Availability
6
Broiler Burner (Inc`s. Keys 7, 8, 9, 15) WPL 330163 Contact Us For Availability
6
Intermediate Glass-Oven Door WPL 326088 Contact Us For Availability
7
Spring WPL 313075 Contact Us For Availability
7
Main Top Support Rod (2 Req) WPL 332284 Contact Us For Availability
7
Insulation WPL 329834 Contact Us For Availability
7
Support-Top Burner WPL 333607 Contact Us For Availability
7
Baffle WPL 328660 Contact Us For Availability
7
Outer Glass-Oven Door WPL 332067 Contact Us For Availability
8
Pal Nut WPL 335776 Contact Us For Availability
8
Lock Box WPL 333627 Contact Us For Availability
8
Dart Button WPL 296097 Contact Us For Availability
8
Air Shutter WPL 327198 Contact Us For Availability
8
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
8
Cushion WPL 112370 Contact Us For Availability
9
Backguard Clip WPL 334375 Contact Us For Availability
9
Washer WPL 21067 Contact Us For Availability
9
Wire Shield WPL 327808 Contact Us For Availability
9
Pressure Regulator WPL 324528 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
9
Frame-Oven Door WPL 332065 Contact Us For Availability
10
Latch Assm. (Inc`s. Key 7) WPL 328656 Contact Us For Availability
10
Right WPL 333349 Contact Us For Availability
10
Left WPL 333350 Contact Us For Availability
10
End Cap WPL ARI57070A3 Contact Us For Availability
10
Main Back WPL 334604 Contact Us For Availability
10
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
10
Handle WPL 332452 Contact Us For Availability
11
Right WPL 334337 Contact Us For Availability
11
Left WPL 334338 Contact Us For Availability
11
Backguard Support WPL ARI57068A3 Contact Us For Availability
11
Clip-Knob WPL 335692 Contact Us For Availability
11
Right WPL 333351 Contact Us For Availability
11
Left WPL 333352 Contact Us For Availability
11
Manifold Panel Bracket WPL ARI57071A5 Contact Us For Availability
11
Insulation-Back & Bottom WPL 329146 Contact Us For Availability
11
Screw (For Key 19) WPL 311455 Contact Us For Availability
11
Spacer, Door Handle WPL 107158 Contact Us For Availability
12
Backguard Front Panel WPL 336660 Contact Us For Availability
12
Knob-Lock WPL 333999 Contact Us For Availability
12
Insulation Retainer (Lt. or Rt.) WPL 333704 Contact Us For Availability
12
Screw WPL 331704 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 286823 Contact Us For Availability
13
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
13
Backguard Bracket WPL 335667 Contact Us For Availability
13
Handle-Latch WPL 333710 Contact Us For Availability
13
Main Top Spacer WPL 335320 Contact Us For Availability
13
Broiler Orifice Fitting WPL 331992 Contact Us For Availability
13
Washer WPL 333014 Contact Us For Availability
14
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
14
Starter Base WPL 334924 Contact Us For Availability
14
Insulation-Latch WPL 328472 Contact Us For Availability
14
Gas Valve Knob (4 Req) WPL 334093 Contact Us For Availability
14
Shut Off Valve WPL 326830 Contact Us For Availability
15
Switch WPL 334649 Contact Us For Availability
15
Insulator-Switch (3 Req) WPL 329171 Contact Us For Availability
15
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
15
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
15
Gasket (For Key 14 & 19) WPL 313563 Contact Us For Availability
15
Mounting Plate-Glass WPL 328615 Contact Us For Availability
16
Lamp Holder WPL 334173 Contact Us For Availability
16
Manifold Panel WPL 335321 Contact Us For Availability
16
Right WPL 334340 Contact Us For Availability
16
Left WPL 334341 Contact Us For Availability
16
Body Side Support WPL ARI57075A8 Contact Us For Availability
16
Manifold Pipe WPL 333901 Contact Us For Availability
16
Center Glass-Oven Door WPL 326632 Contact Us For Availability
17
Clock/Oven Control Knob WPL 334914 Contact Us For Availability
17
Burner Box Bottom WPL 333547 Contact Us For Availability
17
Strike WPL 333892 Contact Us For Availability
17
Gasket (For Key 11) WPL 311692 Contact Us For Availability
17
Retainer-Oven Door Insulation WPL 328623 Contact Us For Availability
18
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
18
Control Panel WPL 335418 Contact Us For Availability
18
Wire Cover-Latch Switches WPL 333694 Contact Us For Availability
18
White WPL 338835 Contact Us For Availability
18
Almond WPL 338836 Contact Us For Availability
18
Main Top (With Trims) WPL ARI57072A2 Contact Us For Availability
18
Rivet WPL 281160 Contact Us For Availability
18
Gas Valve (Inc`s Key 11) Rt. Fr. WPL 335317 Contact Us For Availability
18
Insulation-Oven Door WPL 335782 Contact Us For Availability
19
Screw 6-32x3/8`` WPL 89022 Contact Us For Availability
19
Wire Cover WPL 334266 Contact Us For Availability
19
White WPL 335826 Contact Us For Availability
19
Body Side (Almond) WPL 335830 Contact Us For Availability
19
Body Side (Lt. or Rt.) WPL ARI57076A8 Contact Us For Availability
19
Gas Valve (Inc`s Key 11) Rt.Rr., Lt.Fr.Lt.Rr. WPL 332002 Contact Us For Availability
19
Gasket-Oven Door WPL 292244 Contact Us For Availability
20
Clock/Oven Control Lens WPL 334898 Contact Us For Availability
20
Cleat WPL 335977 Contact Us For Availability
20
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
20
Switch-Gas Valve WPL 310253 Contact Us For Availability
20
Baffle-Oven Burner WPL 335196 Contact Us For Availability
20
Plug-Oven Door Lining WPL 335507 Contact Us For Availability
21
Fluorescent Lamp WPL 334193 Contact Us For Availability
21
Tubing Spacer WPL 335760 Contact Us For Availability
21
Insulation Retainer-Lower WPL 331144 Contact Us For Availability
21
Front Burner-Rt. (Inc`s Key 22 & 23) WPL 334818 Contact Us For Availability
21
Shield-Orifice Fitting WPL 331864 Contact Us For Availability
21
Spacer-Glass WPL 333015 Contact Us For Availability
22
Canopy Panel WPL 334176 Contact Us For Availability
22
Right WPL 334306 Contact Us For Availability
22
Left WPL 334309 Contact Us For Availability
22
Extension-Burner Box Bottom Side WPL ARI57073A6 Contact Us For Availability
22
Storage Compartment WPL 328491 Contact Us For Availability
22
Adjustment Screw WPL 301911 Contact Us For Availability
22
Range Service Cord WPL 332479 Contact Us For Availability
22
Washer WPL 99279 Contact Us For Availability
23
Clock/Oven Control WPL 335448 Contact Us For Availability
23
Right WPL 332281 Contact Us For Availability
23
Left WPL 332282 Contact Us For Availability
23
Main Top Trim WPL ARI57074A4 Contact Us For Availability
23
Leg Levers (4 Req) WPL 326052 Contact Us For Availability
23
Air Shutter WPL 301910 Contact Us For Availability
23
Insulation WPL 335781 Contact Us For Availability
24
Base w/Leverlers (Lt. or Rt.) WPL 334811 Contact Us For Availability
24
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
24
Module-Spark Igniter WPL 320990 Contact Us For Availability
24
Baffle-Side WPL 335780 Contact Us For Availability
25
Mounting Bracket-Components WPL 329442 Contact Us For Availability
25
Washer WPL 323451 Contact Us For Availability
26
Lamp Starter WPL 334104 Contact Us For Availability
26
Oven Door Hinge WPL ARI57077A6 Contact Us For Availability
26
Nut 8-32 WPL 239764 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
Screw 10ABx3/4`` WPL 69364 Contact Us For Availability
27
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
27
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
27
Oven Door Spring (Lt. or Rt.) WPL 334726 Contact Us For Availability
27
Clip WPL 106767 Contact Us For Availability
28
Circuit Board Cover WPL 335774 Contact Us For Availability
28
Eyelet WPL 335718 Contact Us For Availability
29
Circuit Board Spacer WPL 334955 Contact Us For Availability
29
Oven Burner WPL 333746 Contact Us For Availability
30
Circuit Board w/Relay WPL 334701 Contact Us For Availability
30
Bracket-Igniter WPL 311689 Contact Us For Availability
31
Bracket-Catch WPL 335059 Contact Us For Availability
31
Bottom-Oven Burner Box WPL 327775 Contact Us For Availability
32
Catch-Door WPL 335060 Contact Us For Availability
32
Insulation Retainer-Oven Orifice WPL 329279 Contact Us For Availability
33
Strike-Door WPL 335061 Contact Us For Availability
33
Plate-Orifice Fitting WPL 328473 Contact Us For Availability
34
Insulation WPL 303097 Contact Us For Availability
34
Latch-Oven Burner Box Bottom WPL 328479 Contact Us For Availability
35
Handle WPL 332205 Contact Us For Availability
35
Shoulder Screw WPL 328584 Contact Us For Availability
36
Frame WPL 332161 Contact Us For Availability
36
Tubing 3/8`` w/Orifice Fitting (Control Valve WPL 331994 Contact Us For Availability
37
Front Panel-Lower WPL 332118 Contact Us For Availability
37
Control Valve WPL 306267 Contact Us For Availability
38
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
38
Tubing 3/8`` (Control Valve to Shut-Off Valve WPL 231899 Contact Us For Availability
39
Lower Door Lining WPL 335065 Contact Us For Availability
41
Hinge WPL 335058 Contact Us For Availability
43
Oven Bottom WPL 335231 Contact Us For Availability
44
Front Frame WPL 335416 Contact Us For Availability
45
Cover WPL 304835 Contact Us For Availability
46
Oven Body WPL 334819 Contact Us For Availability
47
Flue Box WPL 327781 Contact Us For Availability
48
Insulation-Top & Sides WPL 329147 Contact Us For Availability
49
Broiler Pan WPL 331592 Contact Us For Availability
50
Broiler Pan Grid WPL 326297 Contact Us For Availability
51
Oven Rack WPL 326069 Contact Us For Availability
52
Sensor WPL 334300 Contact Us For Availability
53
Screw WPL 293121 Contact Us For Availability
54
Oven Lamp Holder WPL 87883 Contact Us For Availability
55
Oven Lamp Bulb WPL 111257 Contact Us For Availability
56
Gasket WPL 229371 Contact Us For Availability
57
Oven Lamp Lens WPL 114989 Contact Us For Availability
58
Lamp Lens Retainer WPL 229372 Contact Us For Availability
59
Insulation WPL 335815 Contact Us For Availability
60
Flue Insulation WPL 336510 Contact Us For Availability
× ![]()
